Low Voltage, IP 68
Resin Bus ducts/Rising Mains Range up to 6300 Amp
Get in Touch
Entraco BKS make IP 68 Super Compact Resin Bus Duct
Entraco BKS make IP 68 Super Compact
Resin Bus Duct is an assembly of inaccessible
current carrying conductors encapsulated with
Resin insulation. It can be run in ceilings,
through shafts or inside tunnels.
ENTRACO offers world’s pioneer super compact Bus duct from Switzerland (BKS Stromschienen AG) a full range of Low voltage & Medium Voltage, Resin Cast Bus duct.
ENTRACO offers world’s pioneer super compact Bus duct from Switzerland (BKS Stromschienen AG) a full range of Low voltage & Medium Voltage, Resin Cast Bus duct.
Benefits of IP 68 Super Compact Resin Busducts
- Super compact and space saving compared to cables
- 90º bends and non-standard bends (10º-170º bends) facilitate optimum utilization of space
- Pre-manufactured hence less-skilled labor required during installation and enhanced ease of installation.
- Premium Product Fully weatherproof suitable for harsh, dusty and moisture-laden environment like overhead in open air, underground inside a trench or immersed in water
- Pre-manufactured hence less-skilled labor required during installation and enhanced ease of installation.
- Competitive price compared to other Bus Duct manufacturers in market.
- Zero maintenance, simple and user-friendly
- Degree of Protection - IP68 (Full protection from Dust and Water)
- Insulation is tested for 120mins Fire penetration
- Incase of fire, no toxic fumes are emitted.
- Robust construction provides more strength and protects from any mechanical damage.
- Available in Copper and Aluminum 3 Phase – 3wire/4wire/5wire configuration.
- Tap-offs available at suitable points
Salient features
of Entraco BKS Make IP 68 Resin Cast Busduct:
- Designed for application up to 6300A, 24kV
- Fully Resin encapsulated
- Super Compact Dimensions
- Suitable for Hostile environment
- Complex, non-standard elements
- Electro-erosion resistant
- Self-extinguishing and Halogen free
- High Short Circuit withstand capacity
- Low Impedance, Low Voltage drop
- Zero maintenance and Easy to Install
- IP 68 degree of protection
- IEC Compliant
IP 68 Cast Resin Busducts Installed at Sites
Installation of IP 68 Cast Resin Rising Main installed inside a shaft

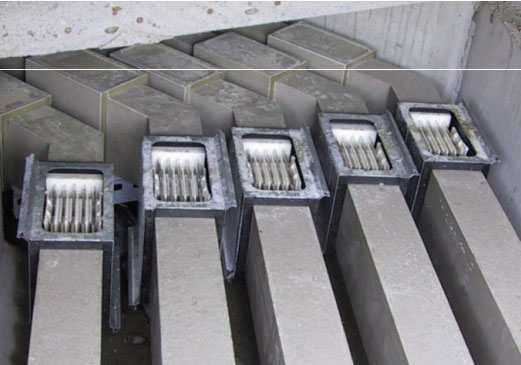

IP 68 Cast Resin Rising Main and TapOff box.

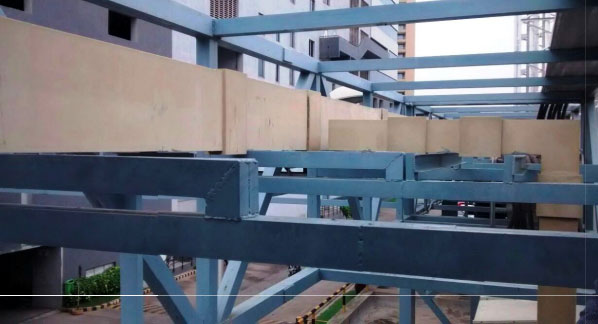

IP 68 Cast Resin Busducts Outdoor Overhead installation.

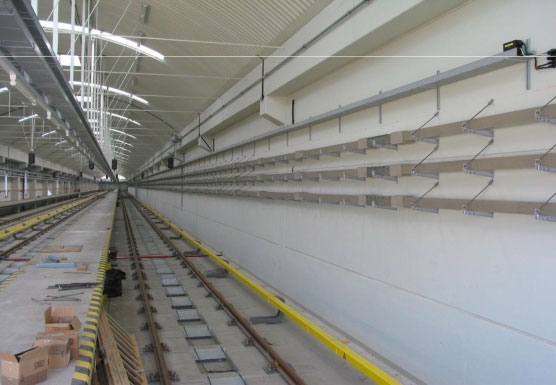

Installation of IP 68 Cast Resin busduct alongside an underground Railway/Metro track.
